The RoboFinisher by Metalcraft Automation Group is revolutionizing the robotic finishing industry with its cutting-edge automation capabilities. Designed to handle robotic finishing tasks like slag removal, weld cleaning, deburring, and edge rounding, this advanced system ensures safer, faster, and more consistent results. Powered by the Fanuc M-20iD/25 6-axis robot, the RoboFinisher combines precision engineering with innovative features to streamline manufacturing processes.

Equipped with features like a pneumatic brushing spindle, wire brush wear monitoring, and a user-friendly touchscreen interface, the RoboFinisher is tailored to meet the demands of modern manufacturing. Its robust construction and advanced compliance monitoring ensure reliable performance, even under heavy workloads.

Benefits

• Increased Operator Safety

  • Reduce physical strain from dangerous, difficult, and dirty tasks

  • Reduce repetitive motion injuries

  • (3) Safety scanner ensure operators are kept out of harm’s way

• Increased Quality

  • Robotic finishing helps to ensure 100% coverage and consistent tool paths every time

  • Tool wear and compliance monitoring ensures consistent results throughout the life of the wire brush

• Increased Productivity

  • The programmable turntable automatically positions parts for the robot to reduce time and increase throughput

KEY Features

• Fanuc M-20iD/25 6-axis Robot with Teach Pendant and Controller

• Automatic Tool Changer for End-Of-Arm-Tools (EOAT)

• Pneumatic Brushing Spindle with Programmable Axial Compliant Pressure Monitoring

  • Power: 600 W

  • Rated speed: 8,000 rpm

  • Idling speed: 15,000 rpm

  • Max torque: 3.2/3.6 Nm

• Wire Brush Sensor

  • The wear of the brush is monitored by a sensor and compensated by program control

• (2) EOAT Storage Positions

• Wire Brush Set-up Station

• Servo Indexing Table for Part Positioning

  • Part Fixtures NOT included

• System Controls

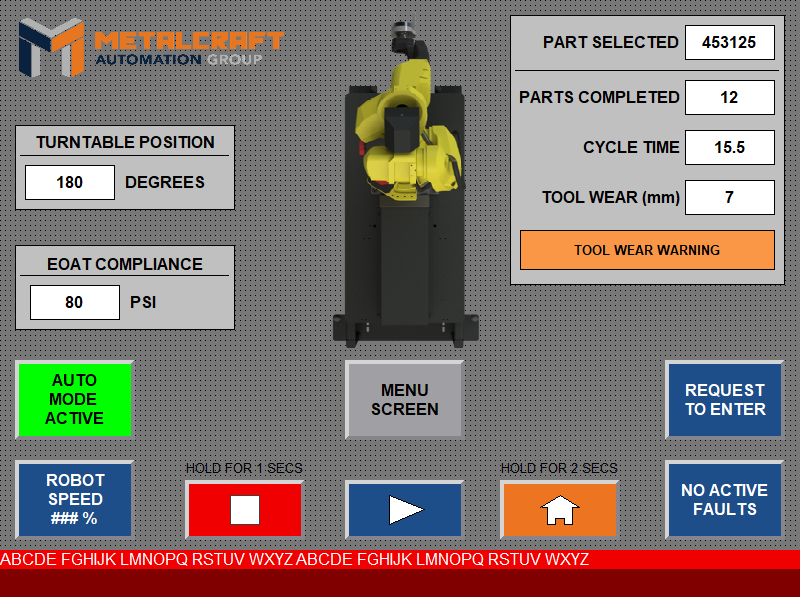

  • Color Touchscreen HMI (Main Screen)
